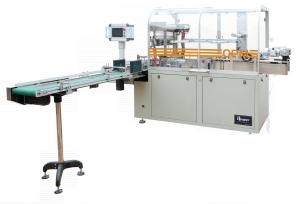

Napkin tissue overwrapping machine OPM30 two stack with servo motor
Main performances and structural features:
1. It adopts human-machine interface, PLC control and fault diagnosis indication with high automation degree.
2. It adopts servo motor for automatic film feeding with speed and length being freely set. The film feeding is smooth and accurate.
3. It adopts servo drive with stable operation, accurate synchronization and convenient adjustment..
4. It adopts temperature module for temperature controlling with convenient temperature setting and accurate temperature controlling.
5. It adopts rotary knife for film cutting with easy cutter alignment and wide film cutting width.
6. While other products are waiting for packing, the heating area will send the finished products that have been packed to prevent the quality from being influenced by heat.
7. While multiple products are packed, various palletizing modes can be adopted to facilitate workshop layout and make product appearance beautiful.
8. Linked production with the automatic cartoning machine, ink jet printer, boxing machine and other production lines can be realized.
Main technical parameters
| Item/model | OPM-30 |
| Packaging materials | OPP,BOPP,PVC(Film) |
| Film width | Max 500mm |
| Packaging size | L160-350×W80-320× H40-120mm |
| Film roll diameter | MaxΦ350mm |
| Packaging speed | 5-30(Package/min) |
| Air consumption | 50-100(L/min) |
| Power supply | 380V,50/60Hz,11.5KW |
| Machine size | Main machine | L3870×W1450×H2100mm |
| Conveying | L3800×W570×H760mm |
| Machine weight | 2200Kg |
